High temperature disinfection cabinet

Published:2011/8/10 2:34:00 Author:Ecco | Keyword: High temperature , disinfection cabinet | From:SeekIC

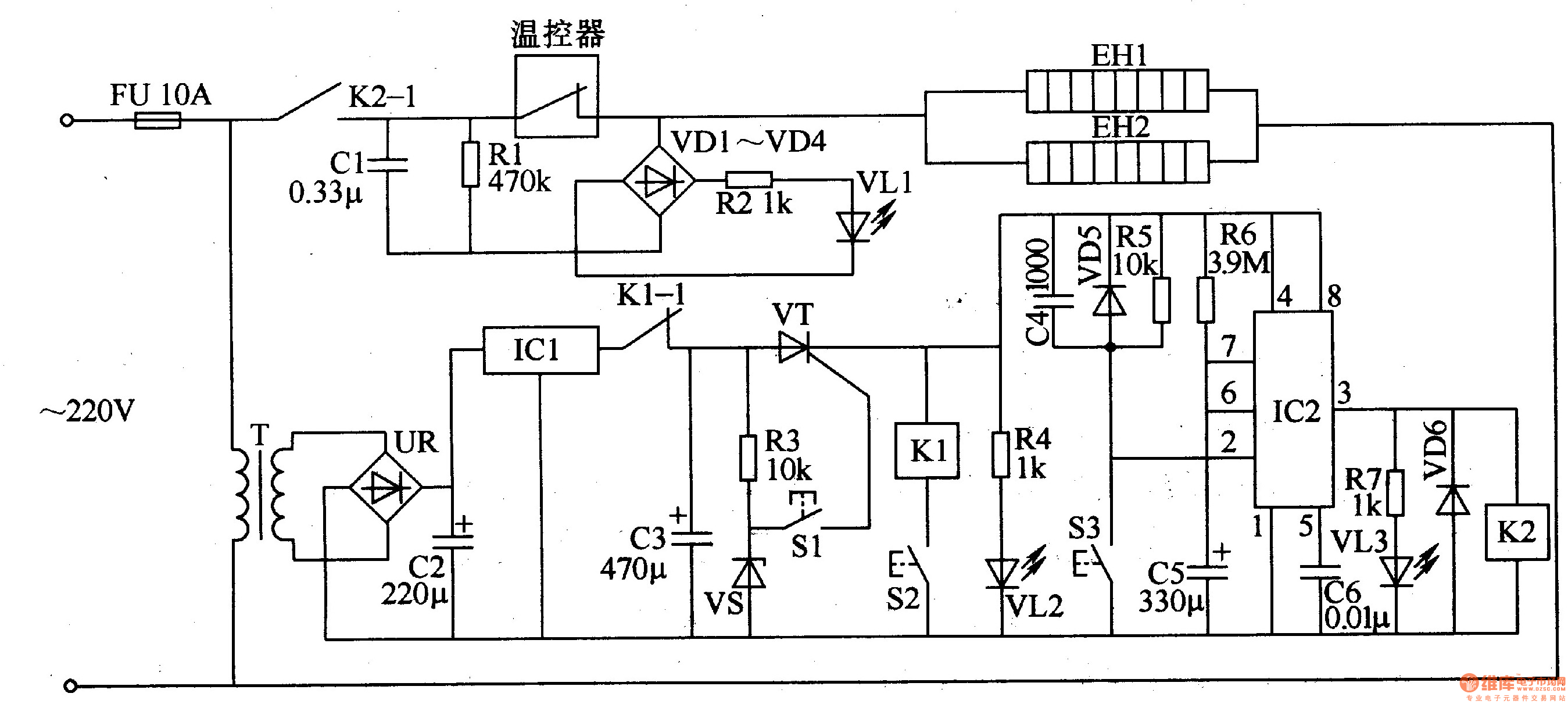

The high temperature disinfection cabinet circuit is composed of the power supply circuit, control circuit and indication circuit, and it is shown in Figure 3-210. Power supply circuit consists of the thermal fuse FU, power transformer T, bridge rectifier UR, three-terminal regulator IC lCl and filter capacitors C2, C3. Indication circuit is composed of the LEDs VLl-VL3, rectifier diodes VDl-VD4, resistors Rl, R2, R4, R7, step-down capacitor Cl and other components. The control circuit consists of the thyristor VT, relays Kl, K2, time-base integrated circuit lC2, control buttons Sl-S3, thermostat, resistors R3, R5, R6, diodes VD5, VD6 and zener diode VS.
