IC_VCO_with_alternate_frequency_sweep_operation

Published:2009/7/25 4:10:00 Author:Jessie | From:SeekIC

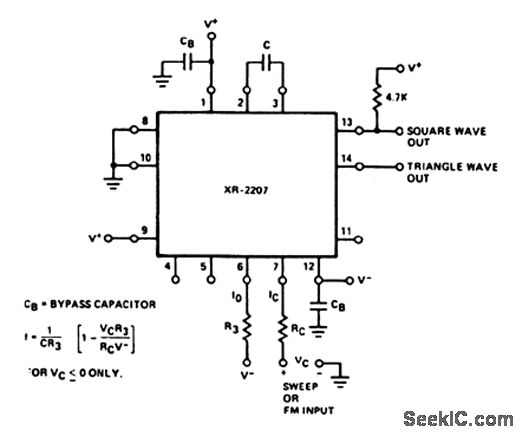

This circuit is an alternate to that of Fig. 5-50, but operates only with negative values of VC. If VC goes to 0 or above, pin 7 is deactivated, and frequency is fixed at 1/(R3C).
