IC_precision_oscillator_with_a_split_supply

Published:2009/7/25 4:17:00 Author:Jessie | From:SeekIC

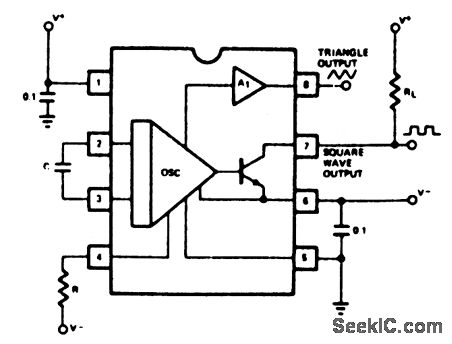

This circuit is similar to that of Fig. 5-44, except that the circuit requires a split supply greater than 7V, and simplifies the bias power connections at pins 5 and 6. Note that the triangle output has a +0.6-V offset when this circuit is used.
