Latch_circuit_using_an_LM3909_chip

Published:2009/7/21 2:39:00 Author:Jessie | From:SeekIC

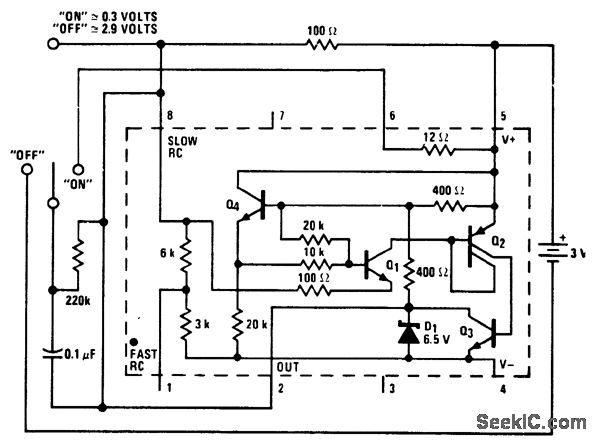

Latch circuit using an LM3909 chip. Circuitry inside dashed lines is the LM3909, The circuit switches to and holds its condition whenever the switch changes sides (courtesy National Semiconductor Corporation).
