Low input current low power consumption peripheral driver circuit

Published:2011/11/9 20:21:00 Author:May | Keyword: Low input current , low power consumption, peripheral driver circuit | From:SeekIC

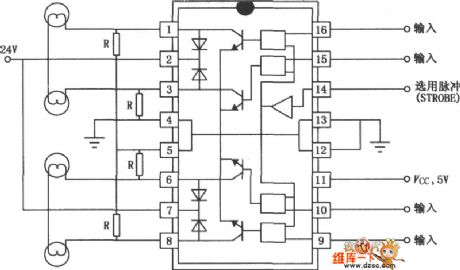

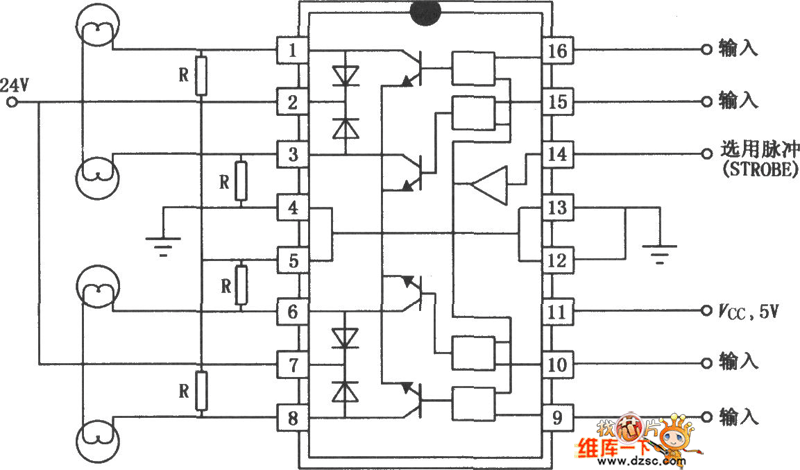

SN75436/75437A/75438 is low input current, low power consumption monolithic four-channel, OC, inverted output peripheral driver, which is used ashigh current, high voltage load driver. This chip's input current is low, power consumption islow, output voltage is high, output impedance ishigh,and it has theoutput clamping diode. The diagram is wiring diagramwhen it is usedas lamp driver.
