MODULATOR_FOR_VIDEO

Published:2009/6/23 4:47:00 Author:Jessie | From:SeekIC

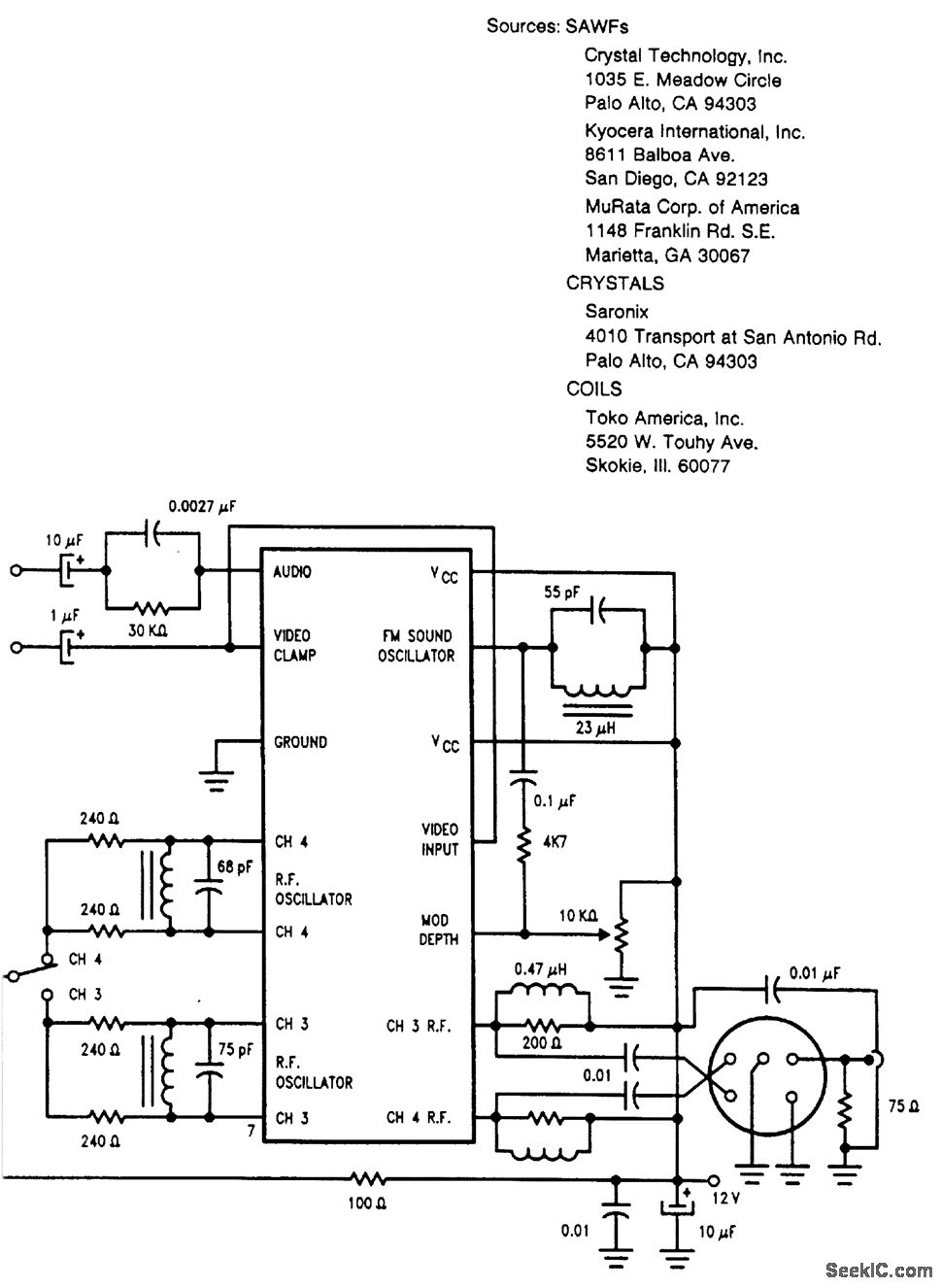

This circuit uses an LM2889 and a saw filter for use as a TV modulator.
