NERVE_STIMULATOR

Published:2009/7/20 20:38:00 Author:Jessie | From:SeekIC

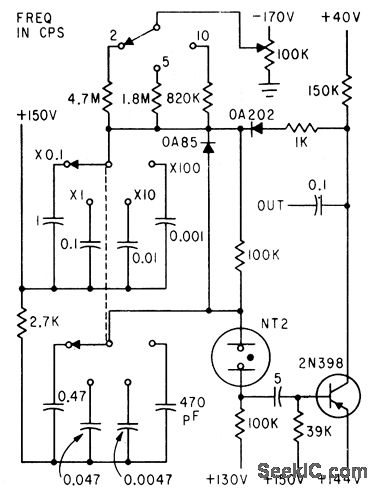

Neon relaxation oscillator and transistor give stable pulse gen erator covering range of 0.2 to 2,500 cps for neurophysiology research.-R. D. Ryan, Low-Cost Pulse Generator, Electronics, 35:15, p 70.
