THREE_OUTPUT_3_KC_OSCILLATOR

Published:2009/7/20 20:34:00 Author:Jessie | From:SeekIC

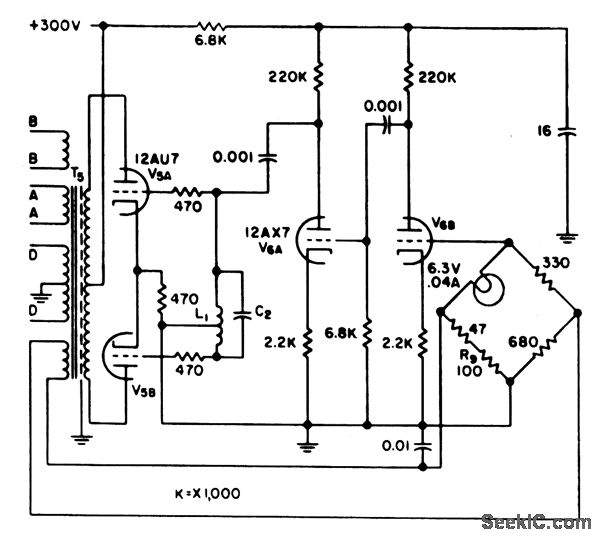

L-C oscillator provides carrier voltages of 4 V rms at 3 kc to blood-volume servo amplifier and to venous and arterial pressure indicator-Amplitude stabilization is achieved by bridge feedback network using filament-type lamp as nonlinear element in one bridge arm.-R. Schild and N. Wesson, Servo Circuit Controls Artifidal Heart, Electronics, 31:15, p 73-75.
