Multiplier_circuit_using_an_AD533

Published:2009/7/21 4:16:00 Author:Jessie | From:SeekIC

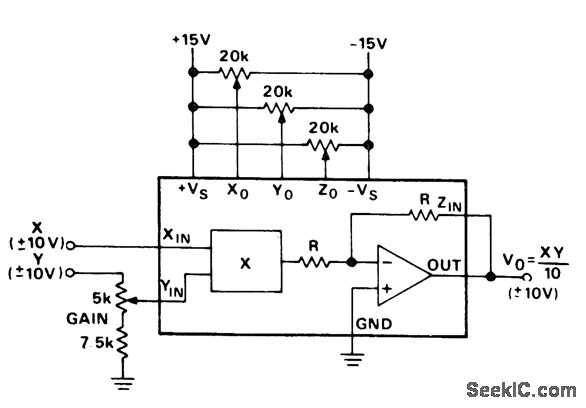

Multiplier circuit using an AD533. With X and Y at zero volts adjust Zo for a zero-volt DC output. With Y at 20 volts peak to peak 50 hertz and X at zero volts adjust Xo for minimum AC output. With X equal to 20 volts peak to peak at 50 hertz and Y at zero volts adjust Yo for minimum AC output. Adjust Zo again for zero volts DC output. With X equal to 10 volts DC and Y equal to 20 volts peak to peak at 50 hertz adjust gain for output equal to YIN (courtesy Analog Devices, Inc.).
