OUTLINE_GENERATOR_FOR_TV_STUDIO

Published:2009/7/20 20:50:00 Author:Jessie | From:SeekIC

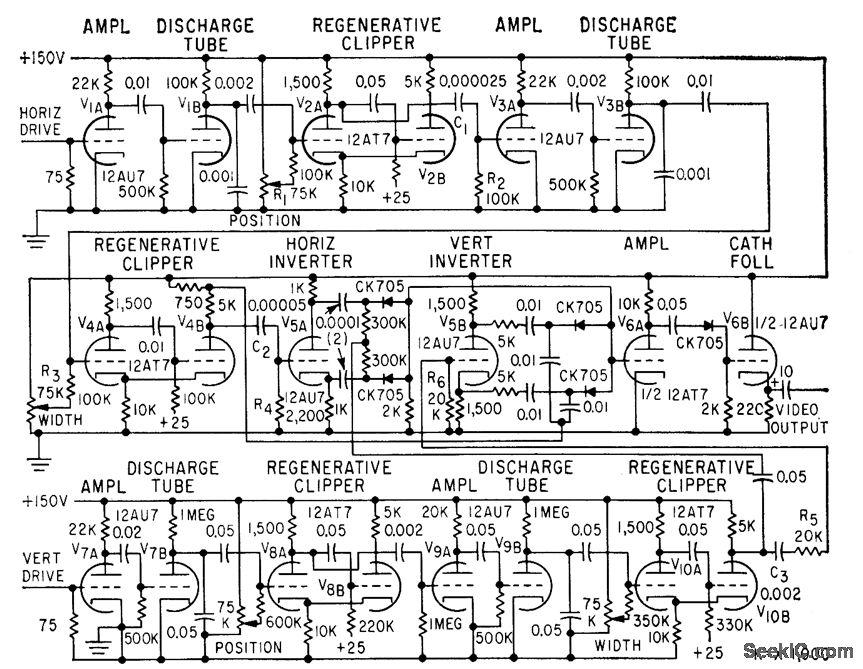

Produces variable-size rectangles in any desired position on tv screen, including horizontal or vertical white lines, for emphasizing particular part of picture during educational tv broadcast.-G. Southworth, Outline Generator for Educational Television, Electronics, 32:14, p 52-53.
