Off_leakage_current_tests

Published:2009/7/23 21:54:00 Author:Jessie | From:SeekIC

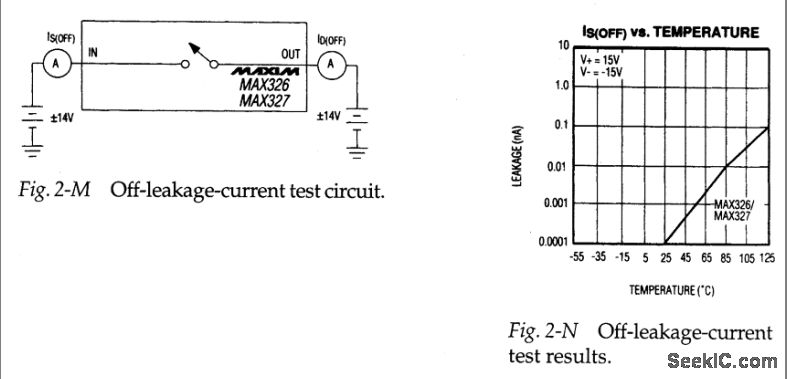

Figure 2-M shows a basic test circuit for measuring off-leakage-current I S(OFF) and I D(OFF) for the MAX326/27. Figure 2-N shows how I S(OFF) changes with temperature
