50MH2 Photoelectric Demodulation Circuit

Published:2011/5/26 9:30:00 Author:Robert | Keyword: 50MH2, Photoelectric, Demodulation | From:SeekIC

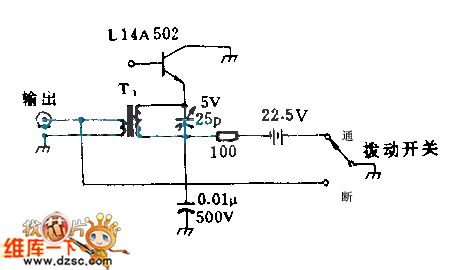

The parallel tuned method can be used in the single GE type photodiode circuit in the picture. When the parallel photodiodes have five, it is required to use the series tuned method. If the tuned capacitance uses its 0PF, the frequency response could be about 00MHz. T1's primary stage is 2 laps and its secondary stage is 7 laps, which wind around the high-frequency plastic core.
