CONSTANT_CURRENT_DIODE_AS_COLLECTOR_LOAD

Published:2009/7/13 4:32:00 Author:May | From:SeekIC

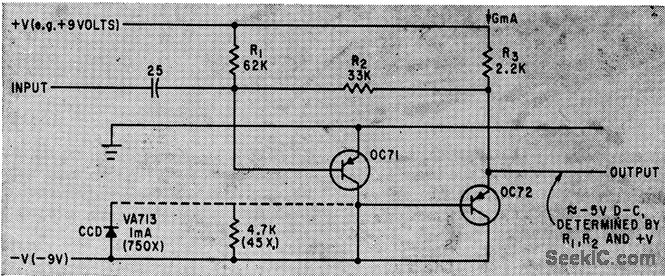

Gain is 45 with 4.7K resistive load, and increases to 750 with CCD as load.Gain-reducing effect of external load paralleling CCD can be eliminated by using emitter.follower to isolate load from collector circuit.-T.K.Hemingway, Applicclfions of the Constant-Current Diode,Electronics, 34:42, p 60-63.
