Contacting Two-Dimensional Tracking System Device Circuit

Published:2011/7/20 9:16:00 Author:Robert | Keyword: Contacting, Two-Dimensional, Tracking, System, Device | From:SeekIC

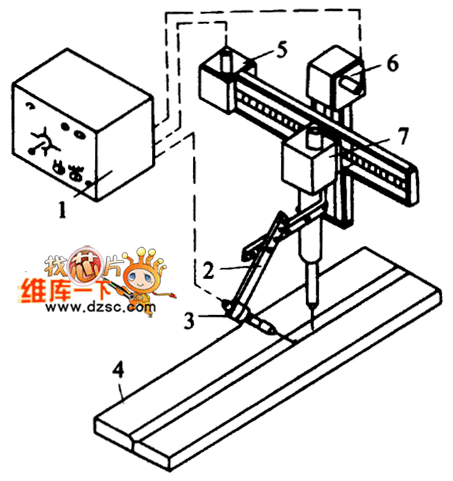

The picture shows the contacting two-dimensional tracking system device circuit. The part 1 is control box. The part 2 is sensor bracket. The part 3 is the sensor. The part 4 is workpiece. The part 5 is horizontal adjustable sliding board. The part 6 is hight adjustable sliding board. The part 7 is welding head.
