Convertor Circuit Composed Of TPS54610

Published:2011/8/13 6:19:00 Author:Robert | Keyword: Convertor | From:SeekIC

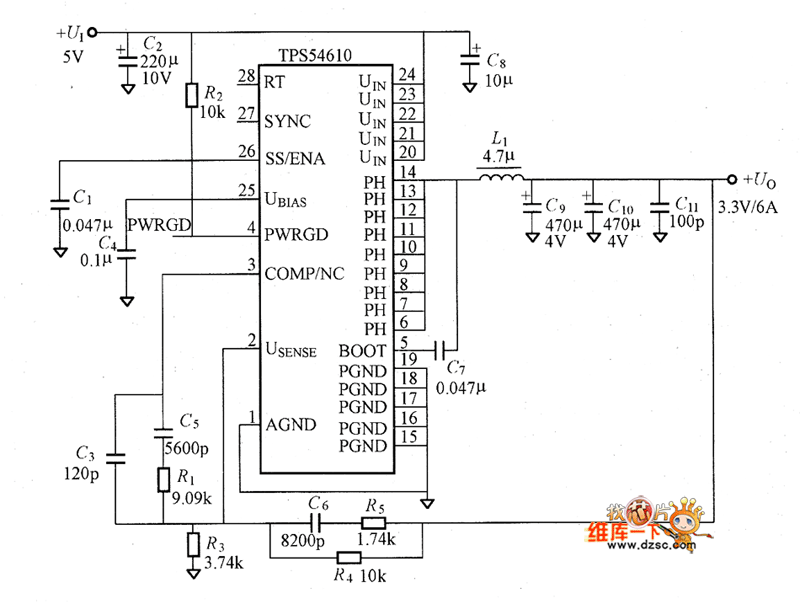

The picture shows the low input voltage to low output voltage DC-DC convertor. It uses the PWM comtrol method and the oscillation frequency is set to be 350kHz or 550kHz. Its input voltage is 5V and output is 3.3V/61A. The TPS54610 uses TSSOP package. It has internal high-end MOSFET and low-end MOSFET. All the semiconductor devices needed by the power are modularized. It can make up the new buck convertor. So its conversion efficiency is very high. The picture shows the convertor circuit composed of TPS54610.
