Diode light changing switch circuit

Published:2011/6/27 3:25:00 Author:TaoXi | Keyword: Diode, light changing, switch circuit | From:SeekIC

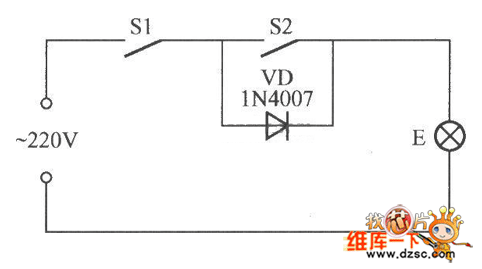

As the figure shows, when the S1 and S2 are closing, the light E lights normally; when the S1 is in the closing state, and the S2 is opening, the light E outputs the dark light; if you open S1, the light E will turn off no matter the S2 is opening or closing.
