HT6308 Integrated Circuit Internal Diagram Circuit

Published:2011/6/15 0:49:00 Author:Robert | Keyword: Integrated Circuit, Internal, Diagram | From:SeekIC

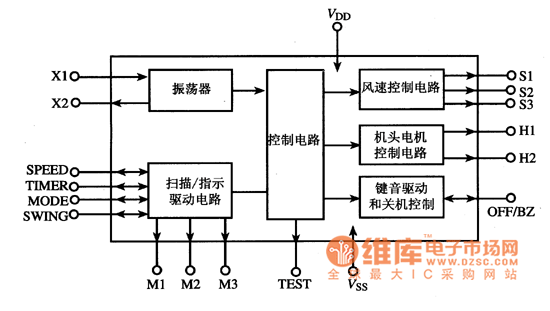

The HT6308 is a fan single-chip micro-computer IC which is widely used in many kinds of fan program control circuits. The HT6308 IC is produced by the large-scale CMOS process technology. Besides the control for normal wind speed, it can be used to select three kinds of wind, which is normal wind, simulated natural wind and sleeping wind. It can also separately control the up and down, left and right movement of the fan shook, and at the same time do the movement of comprehensive and three-dimensional shook. It has the timing function as long as 8h and has the key-sound reminder function when shutdown. Its internal diagram circuit is shown in the picture. The picture shows the HT6308 IC internal diagram circuit.
