HT9245DL IC Typical Application Circuit

Published:2011/7/1 7:41:00 Author:Robert | Keyword: IC, Typical, Application | From:SeekIC

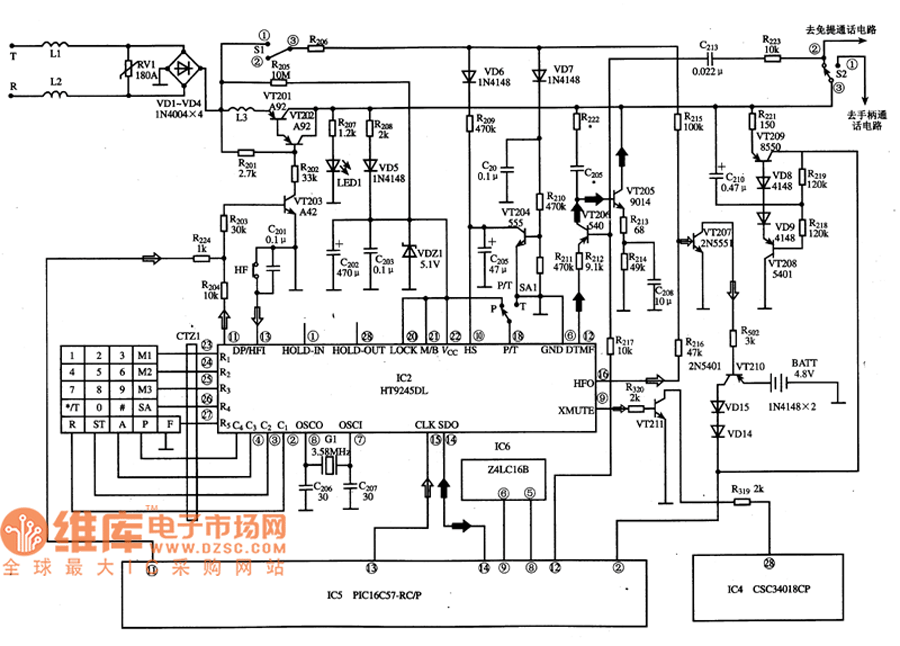

The HT9245DL is a single-chip micro-computer which is widely used in caller ID cordless or corded phones. For example, the Qiaoxing series IC card telephones and so on. The dialing system typical application circuit composed of HT9245DL IC is shown in the picture. The picture shows the HT9245DL IC's typical application circuit.
