K5S7C2616B IC Typical Application Circuit

Published:2011/6/22 8:19:00 Author:Robert | Keyword: IC, Typical, Application | From:SeekIC

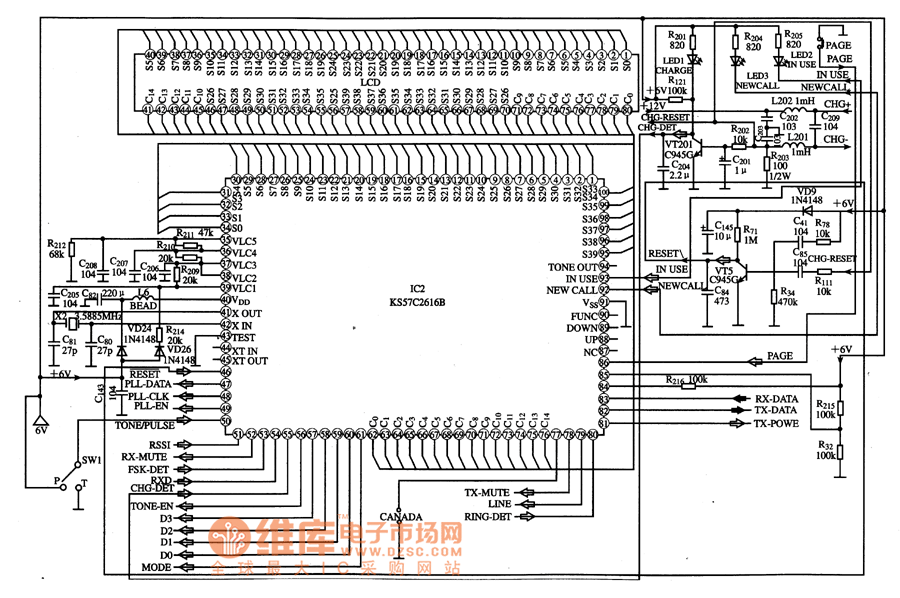

The K5S7C2616B is a communication single-chip micro-computer IC which is mainly used as the mobile phone control microprocessor in the cordless telephone. The KS57C2616B IC's internal part is made up of CPU which is used to control many kinds of commmand signals' input and output, FSK decoding circuit, many kinds of command signals receiving and detecting circuit and resending circuit, and signal path selection circuit, system clock oscillation circuit, transmitting and receiving static double tone/pulse dialing selecting circuit, ring signal detection circuit, indicator light control, LCD liquid crystal display decoder driving circuit and so on. The comtrol circuit's typical application circuit composed of K5S7C2616B IC is shown in the pictrue. The picture shows the KS57C2616B IC's typical application circuit.
