KA7552 IC Typical Application Circuit

Published:2011/6/17 6:55:00 Author:Robert | Keyword: IC, Application | From:SeekIC

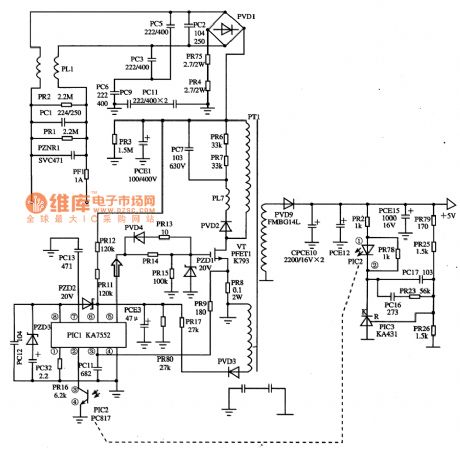

The KA7552 is a switching power control IC produced by the FAIR CHLD company which is widely used in imported player, fax equipment, printers and monitors and other electronic equipment's switching power circuit. The switching power typical application circuit composed of the KA7552 IC is shown in the picture. The picture shows the KA7552 IC's typical application circuit. It shoube be noted that this picture is original switching power circuit picture. So the component symbols which do not meet the standard in the picture are unchanged. It would be difficult to buy the original model if the KA7552 IC is broken. After comparing it is found that the FA5311 power IC's electrical specifications is nearly the same with this IC which is used in computer monitors.
