KDD28 IC Typical Application Circuit

Published:2011/6/15 2:14:00 Author:Robert | Keyword: IC, Typical, Application | From:SeekIC

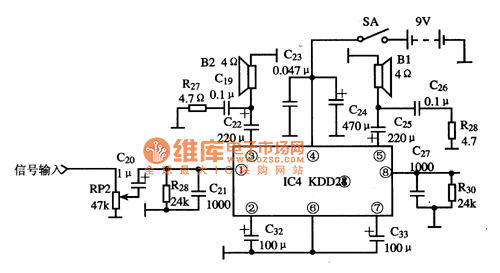

The KDD28 is a double sound-channel tone power amplifier IC which is used in many audio equipments such as electronic organ, multimedia audio, computer audio and so on. The KDD28 IC has internal two channel power amplifier circuit with the same function. And it also has over-heat protection circuit and over-current protection circuit and so on. The picture shows the KDD28 IC typical application circuit.
