M54573L Frequency Band Conversion Switch Integrated Circuit

Published:2011/7/9 5:13:00 Author:Robert | Keyword: Frequency Band, Conversion, Switch, Integrated | From:SeekIC

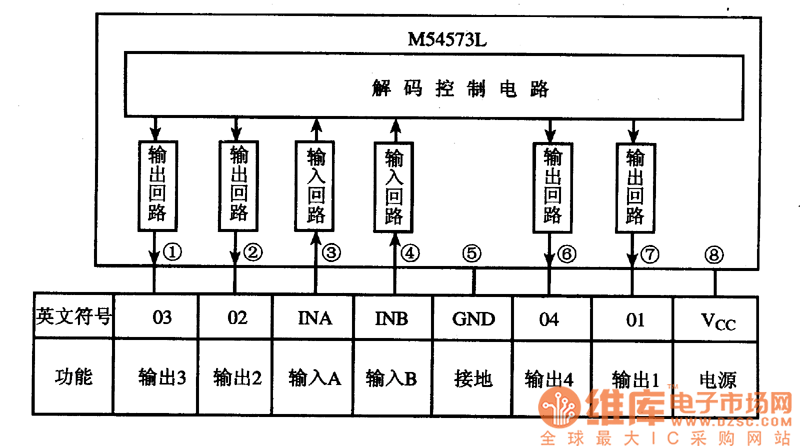

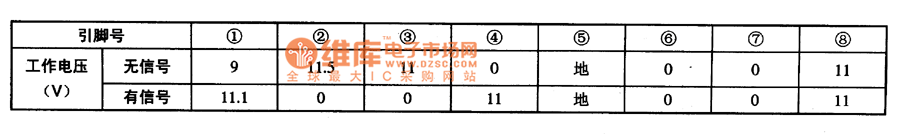

The M54573L is a frequency band conversion switch IC produced by the Japanese Mitsubishi company. It is widely used in many kinds of screen in domestic and imported color TV sets. 1.Its functional features. The M54573L IC's internal circuit is mainly made up of frequency-band conversion control signal decoding circuit, decoding driving control circui and other function circuits. 2.Its pin's function and data. The M54573L IC uses 8-pin single inling package. Its pin's function is shown in the picture and its typical working voltage is listed in the table. The picture shows the M54573L IC's internal circuit diagram and pin's function. The table shows the M54573L IC's typical working voltage.
