M58653P Memory Integrated Circuit

Published:2011/6/28 7:52:00 Author:Robert | Keyword: Memory, Integrated | From:SeekIC

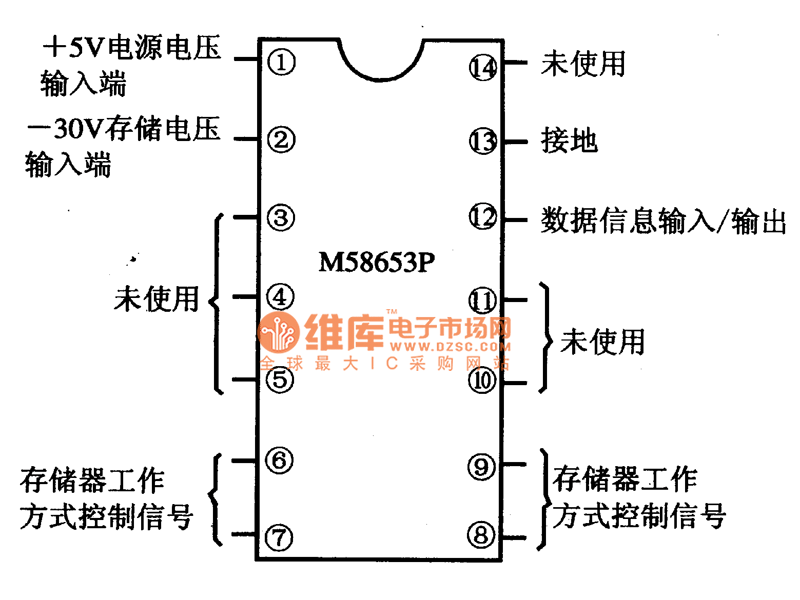

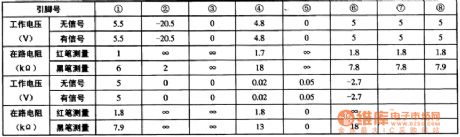

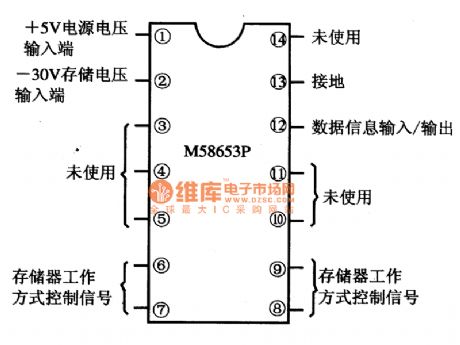

The M58653P is a memory IC produced by the Japanese Mitsubishi company which is widely used in many brands of color TV sets. 1.Its functional features. The M58653P IC has internal data input/output interface circuit, memory matrix circuit, mode control circuit and so on. 2.Its pin's functions and data. The M58653P IC uses 14-pin dual-in-line plastic structure. Its pin's functions are shown in the picture and its working parameters are listed in the table. The picture shows the M58653P IC's pin's functions. The table shows the M58653P IC's main pin's working parameters.
