Modulaor Circuit

Published:2011/5/22 2:19:00 Author:Robert | Keyword: Modulaor | From:SeekIC

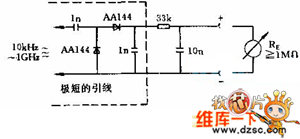

The picture shows the peak value rectifier's voltage doubler circuit which is used as the test-head circuit. It is used to control the high resistance display circuit loop (FET voltage meter). It can work under high-frequency conditions because all high-frequency components are all using very short lead. If the length of the lead is no more than 2mm, this circuit can work at the VHF area.
