PAL Colour Encoder (TEA2000-V1)

Published:2012/9/13 3:45:00 Author:Ecco | Keyword: PAL , Colour , Encoder | From:SeekIC

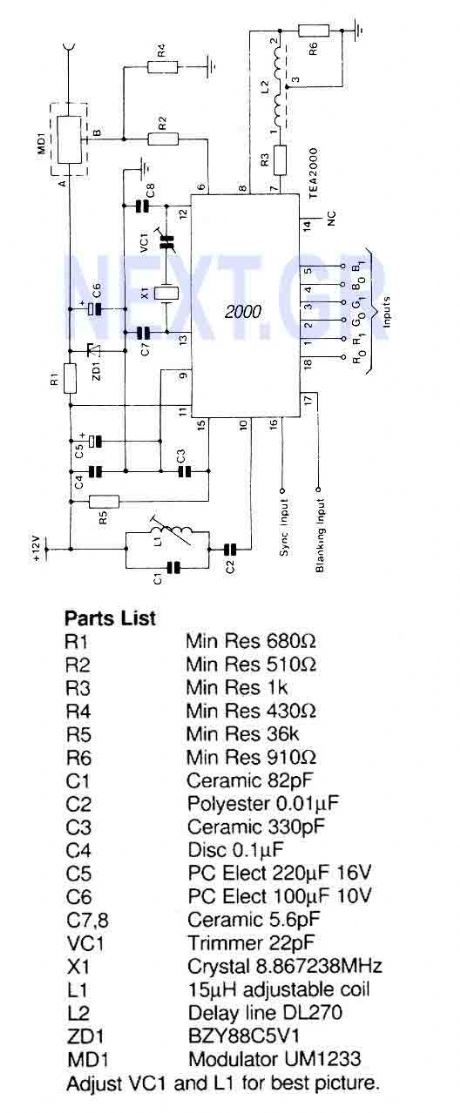

A PAL color encoder and video summer which requires just composite sync and composite blanking inputs, and a 6-bit binary coded input giving the color information. The inputs are organized as 2 bits per primary color with gamma correction automatically applied to the resultant luminance and chrominance levels. Source: NEXT.GR
