Pulse Electronic Fishing Device Circuit

Published:2011/5/21 0:58:00 Author:Robert | Keyword: Pulse, Electronic, Fishing Device | From:SeekIC

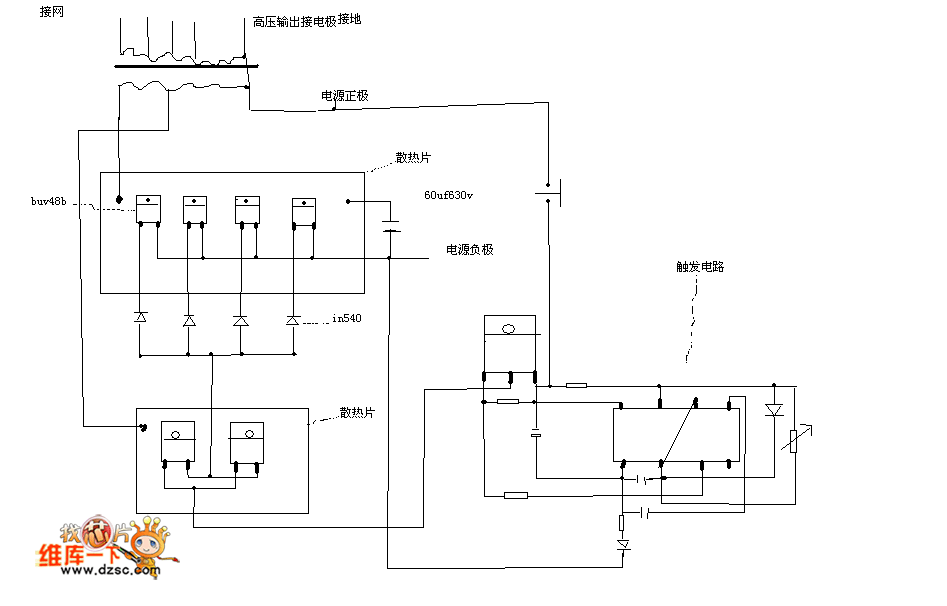

For the pulse electronic fishing device, the primary coil uses the 2.5 copper wire to reel 60 cycles. The secondary coil uses the 1.5 copper wire to reel 160 cycles with the opposite direction and connect to the negative pole. The primary 20 cycles' coil contactor is connected with some small heat-sinking capacitances which could use two 30uF 600V capacitance in parallel.
