Reducing Power Consumption ISO113 Circuit

Published:2011/5/21 1:56:00 Author:Robert | Keyword: Reducing, Power Consumption | From:SeekIC

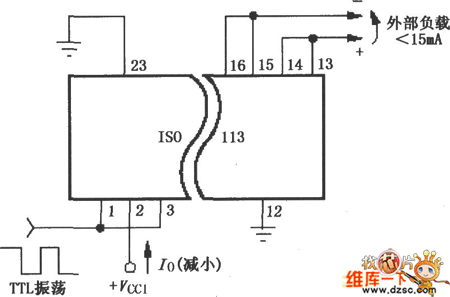

The Reducing Power Consumption ISO113 Circuit is shown in the picture shown below. For single-channel or multi-channel synchronization application it requires the Vcc1's current to be less than +/-15mA. It can use a oscillation circuit to generator TTL voltage level to drive the synchronization input port(3 foot) and enable port (1 foot) to reduce the power consumption.
