Suspensory Hydraulic Generator Structure Circuit

Published:2011/5/8 10:44:00 Author:Robert | Keyword: Suspensory, Hydraulic Generator, Structure | From:SeekIC

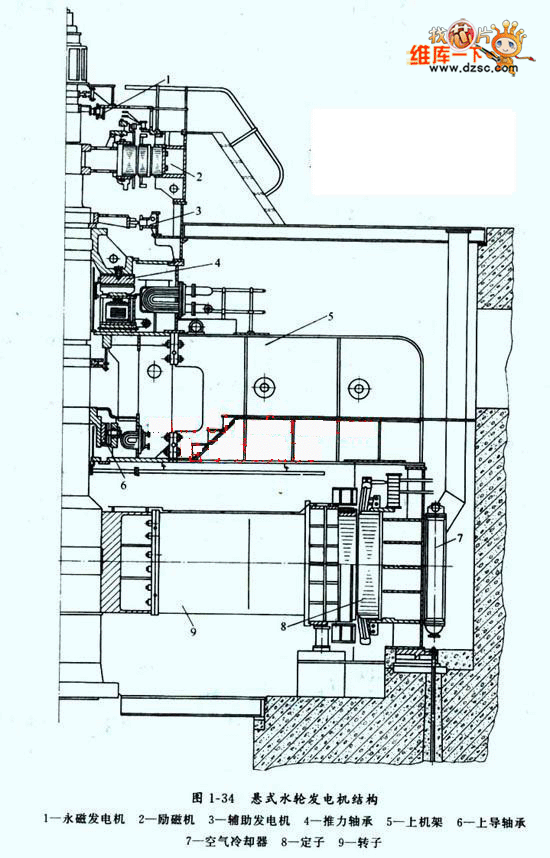

The Suspensory Hydraulic Generator Structure Circuitis shown in the picture below. Its structure has: 1-permanent magnet generator. 2-Exciter. 3-Auxiliary generator. 4-Thrust bearing. 5-Up Rack. 6-Up connecting bearing. 7-Air cooler. 8-Stator. 9-Rotor.
