Ultra-Wide Bandwidth Large-Current Buffer Circuit

Published:2011/5/16 9:43:00 Author:Robert | Keyword: Ultra-Wide Bandwidth, Large-Current Buffer | From:SeekIC

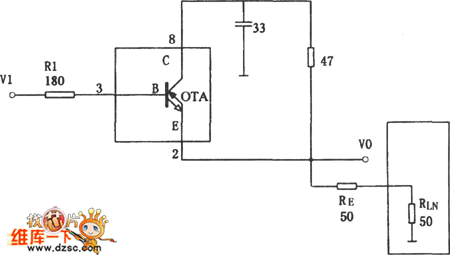

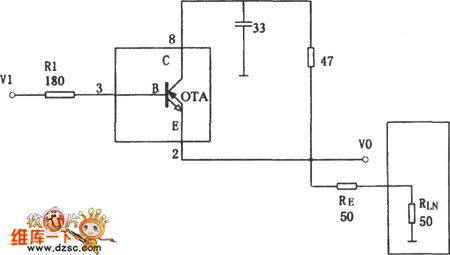

The Ultra-Wide Bandwidth Large-Current Buffer Circuit is shown in the picture below. This circuit is a large-current buffer which can achieve bandwidth of 350~460MHz. This circuit uses the wideband transconductance amplifier OPA606. When the output voltage is +/-10V, its output current can be +/-10mA (typical), and the short current is +/-20mA (typical).
