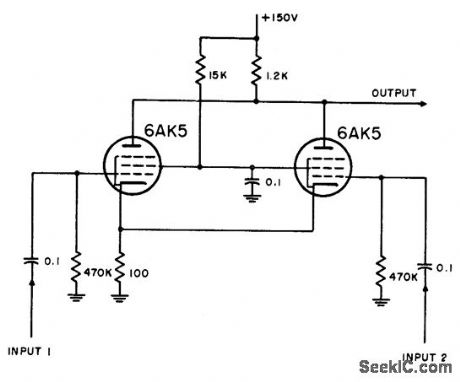

PENTODE_COMMON_PLATE_MIXER

Published:2009/7/23 23:18:00 Author:Jessie | From:SeekIC

Circuit is good adder for coincident inputs. Operates best with positive input pulses and negative going output.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N4-7.
