PIEZO_DRIVER

Published:2009/6/24 23:42:00 Author:May | From:SeekIC

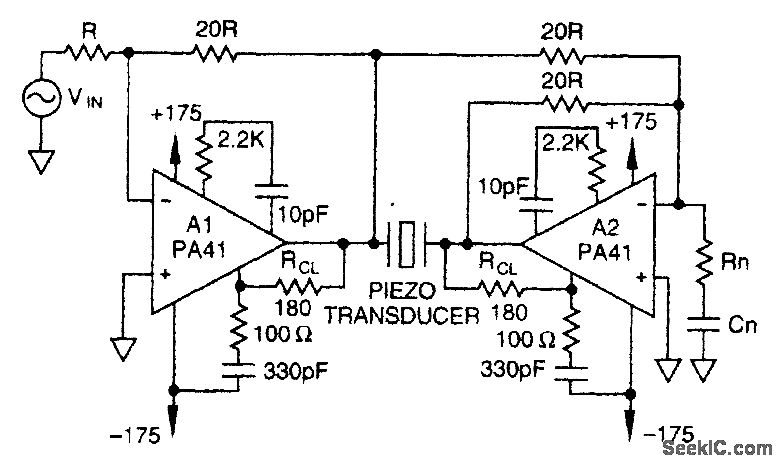

Using a PA41 from Apex Microtechnology, this monolithic amplifier is capable of 350-V operation and delivers 660 V p-p in a bridge circuit.
