PIEZO_MOTOR_DRIVE

Published:2009/6/23 22:06:00 Author:Jessie | From:SeekIC

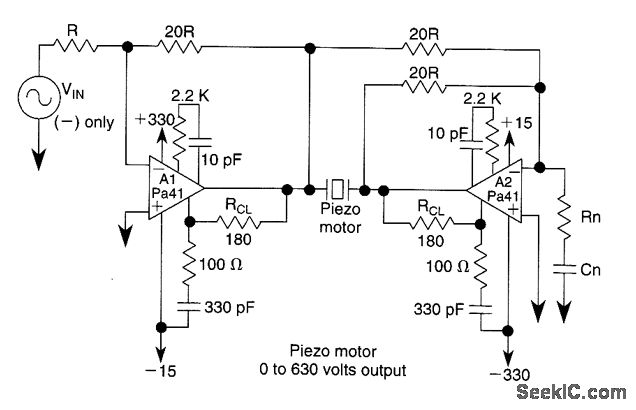

Using two Apex Microtechnology PA41 devices in a bridge circuit, this piezo motor driver delivers 0- to 630-V output.
