PITCH_AND_YAW_CHANNELS

Published:2009/7/24 0:01:00 Author:Jessie | From:SeekIC

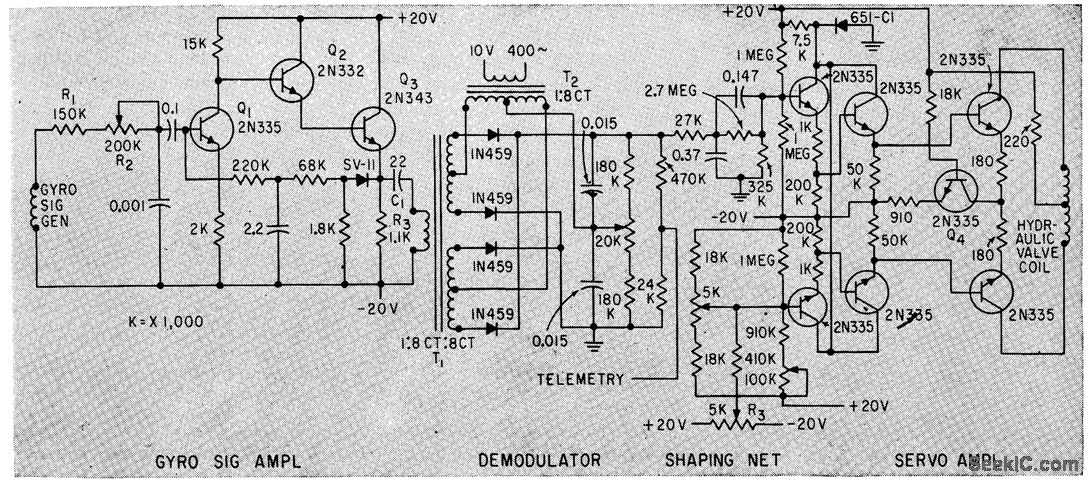

Identical channels amplify, demodulate, and shape gyro signal to feed direct-coupled differential servo amplifier whose output differential cur rent goes to dual-coil hydraulic control valve in rocket.-R. E. King and H. Low, Solid-State Guidance For Able-Series Rockets, Electronics, 33:5, p 60-63.
