PREFERRED_VIDEO_DETECTOR

Published:2009/7/23 23:16:00 Author:Jessie | From:SeekIC

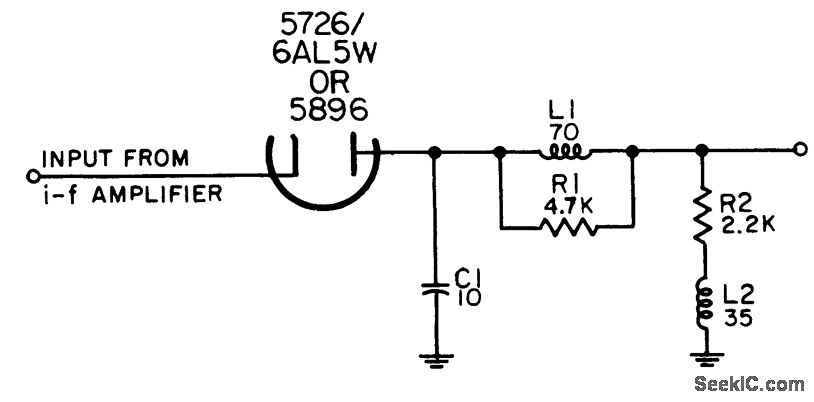

For demodulating pulse-modulated i-f signals in range between 20 and 70 Mc. Video output pulses ore negative, with 40 nsec rise time and 70 nsec fall lime.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, PC 20, p 20-2.
