Quartz_stabilized_oscillator_with_electronic_gain_control

Published:2009/7/24 7:21:00 Author:Jessie | From:SeekIC

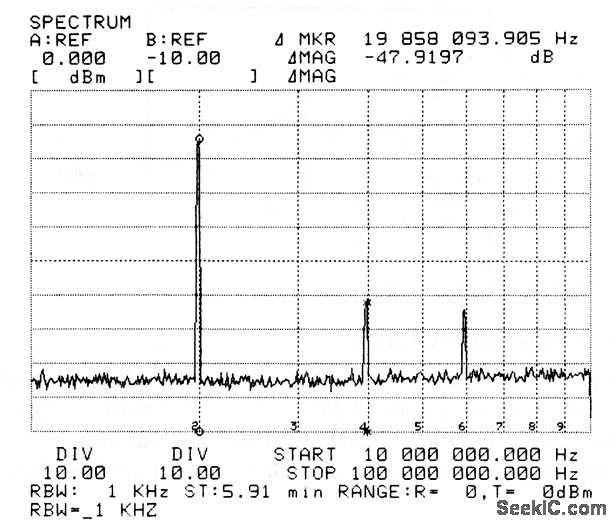

This circuit replaces the lamp（Fig. 5-18）with an electronic gain control or stabilization loop. To use this circuit, adjust the 50-Ω trimmer until 2-Vpp oscillations appear at the output of A1. Figure 5-19B is a spectrum analysis of the oscillator output. Linear Technology Corporation, 1991, AN47-50.
