RECEIVER_INTERFACE_CIRCUIT_FOR_PREAMPS

Published:2009/6/16 23:05:00 Author:May | From:SeekIC

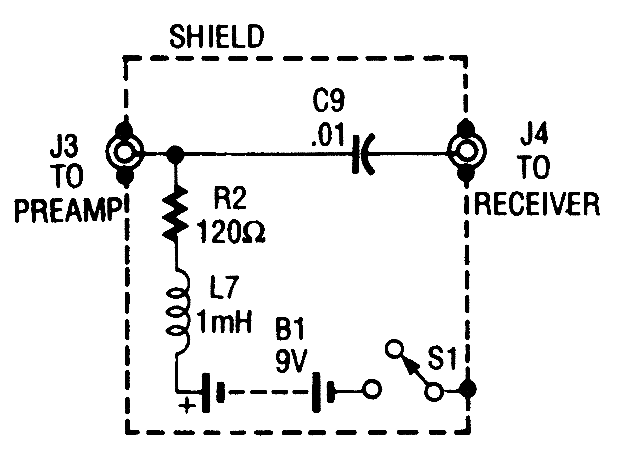

The purpose of the receiver/interface circuit is to pass RF to the receiver through capacitor C9, while adding dc power to the feedline through R2 and RF choke L7.
