REPEATER_BEEPER

Published:2009/6/23 1:38:00 Author:Jessie | From:SeekIC

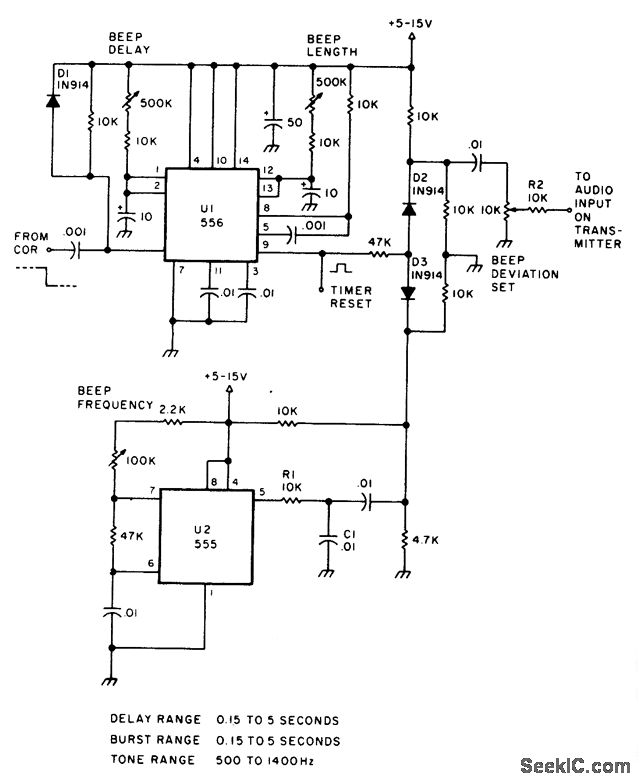

The signal from COR triggers U1 which produces a beep-gate pulse that enables the analog gate consisting of D2 and D3 to pass the beep tone generated by U2.
