Room Ioniser circuit

Published:2012/9/12 20:51:00 Author:Ecco | Keyword: Room Ioniser | From:SeekIC

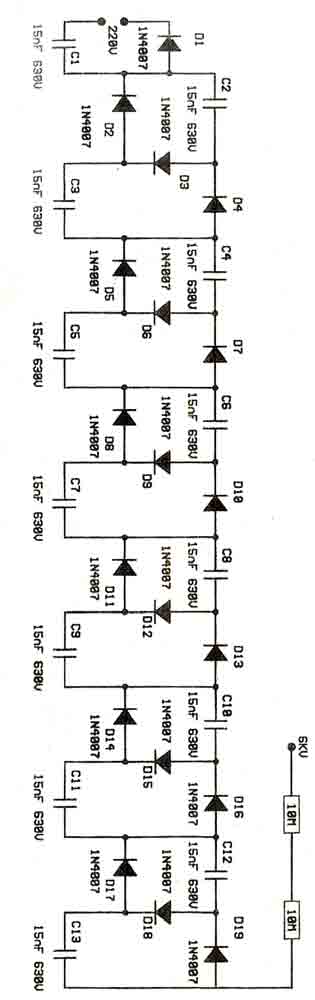

This is a voltage multiplier circuit acting as an Ioniser. Its calculated to feed 220V from mains and the output is about 6KV. Caution should take with the circuit as can be dangerous due to mains. You can place a needle at the output 3cm long.
