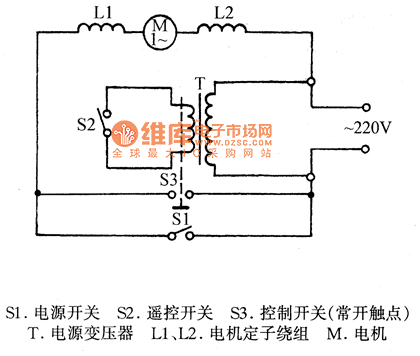

SC-4500E cleaner circuit diagram

Published:2011/5/13 1:44:00 Author:Ecco | Keyword: cleaner | From:SeekIC

S1-power switch, S2-remote switch, S3-control switch (normally open contact), T-power transformers, L1, L2-stator windings, M-motor
