Simple_line_transceiver

Published:2009/7/24 22:15:00 Author:Jessie | From:SeekIC

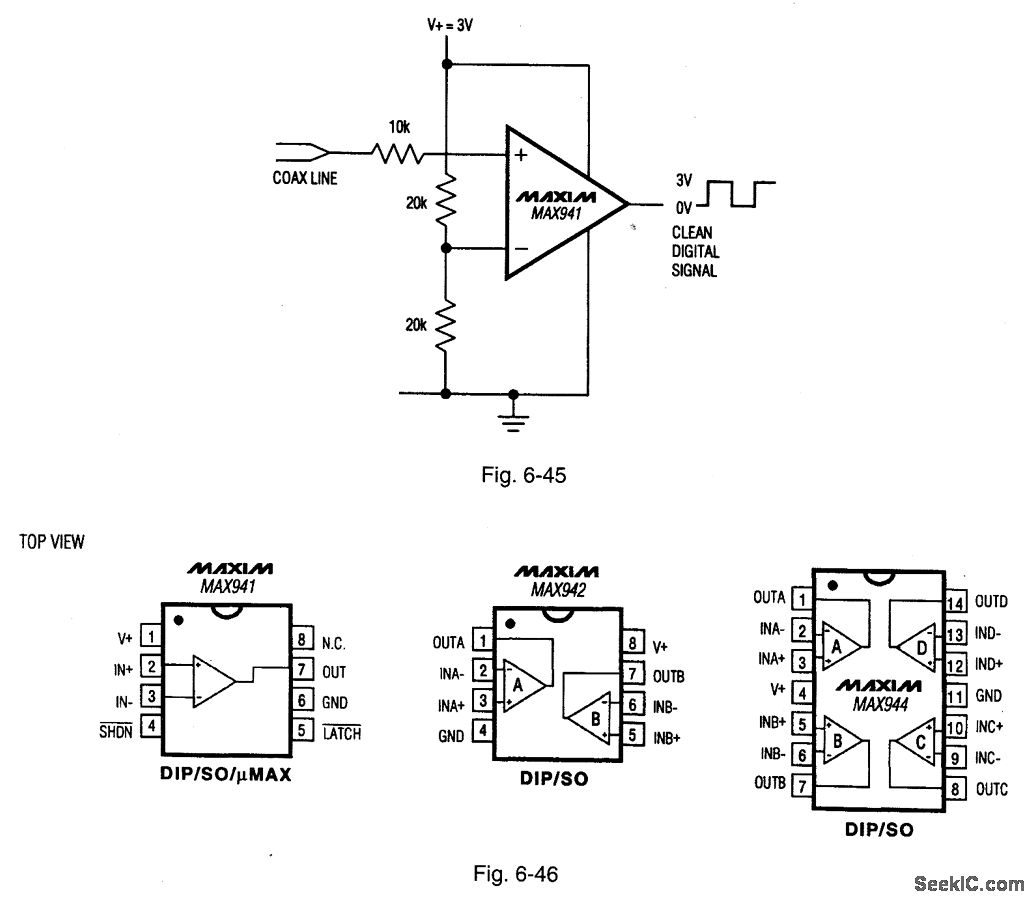

Figure 6-45 shows a MAX941 comparator connected as a simple line transceiver. The output is a clean square-wave signal at the input frequency. The output amplitude is equal to V+. See Fig. 6-46 for pin configurations. MAXIM NEW RELEASES DATA BOOK, 1995, P. 3-61, 3-69.
