Solenoid Switch Circuit

Published:2011/4/21 9:48:00 Author:Christina | Keyword: Solenoid, Switch Circuit | From:SeekIC

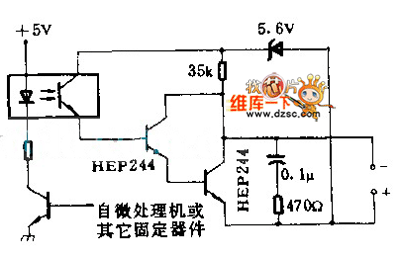

When the switch teleprinter is inductive load, the optical isolator provides the protection relay between the teleprinter and 8080A or other microprocessors. The RC filter which across the darlington transistor accelerates the reset speed of print magnet.
