TC901--the integrated circuit of fan single chip microcomputer

Published:2011/6/7 11:08:00 Author:qqtang | Keyword: integrated circuit, single chip microcomputer | From:SeekIC

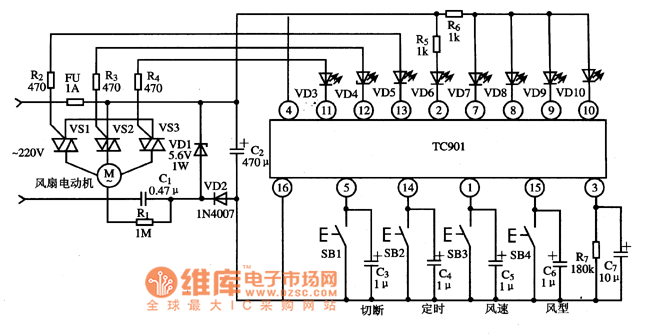

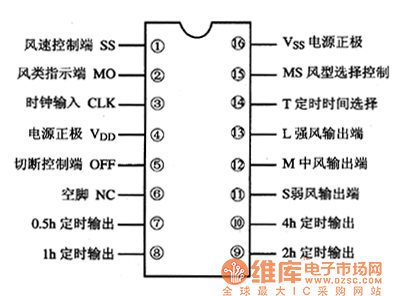

TC901 is a microcomputer integrated circuit of fan single chip produced by Toshiba, which is widely used in speed adjusting and power adjusting of all kinds of fans and household appliances.1.function featuresTC901 includes order decoding circuits, clock circuits, indicator drive circuitS, wind speed adjusting circuits and so on.2.pin functionsTC901 is in 16-pin dual in-line package, whose pin functions are shown in Figure 1.Figure 1. The pin functions of TC901 3.typical application circuitFigure 1. The typical application circuit of TC901
