TELEPHONE_HOLD_CIRCUIT

Published:2009/6/22 22:57:00 Author:Jessie | From:SeekIC

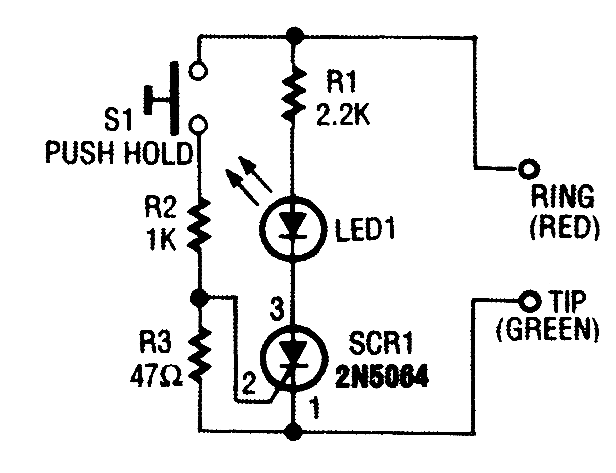

When S1 is pressed, the SCR fires, and places LED1 and R1 across the phone line. The line volt-age drops to about 20 V, which holds the connec-tion to the phone company's central office.
