TRIGGERED_GROUNDED_GRID

Published:2009/7/24 3:37:00 Author:Jessie | From:SeekIC

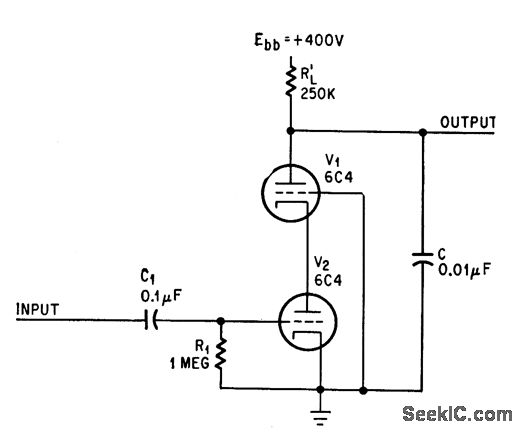

Triggered linear sawtooth generator uses grounded-grid amplifier, eliminating initial step voltage that usually occurs in Miller sweep.-C. Sing, Grounded-Grid Circuit Sweeps Better Than Miller or Bootstrap, Electronics, 38;6, p 83-84.
