TV_SOUND_SLOPE_DETECTOR

Published:2009/7/20 20:52:00 Author:Jessie | From:SeekIC

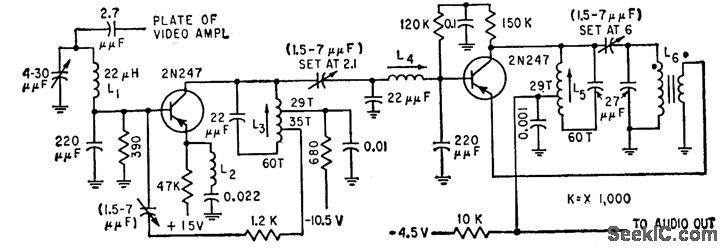

Uses drift transistor as efficient, highly sensitive oscillating linear-slope detector, injection-locked by one stage sound driver. A-m rejection is uniformly high over full detector bandwidth. Audio output is constant, independent of carrier strength.-M. Meth, Tv Sound Detector Uses Drift Transistor, Electronics, 32:8, p 62-64.
