TV_video_processor

Published:2009/7/21 8:10:00 Author:Jessie | From:SeekIC

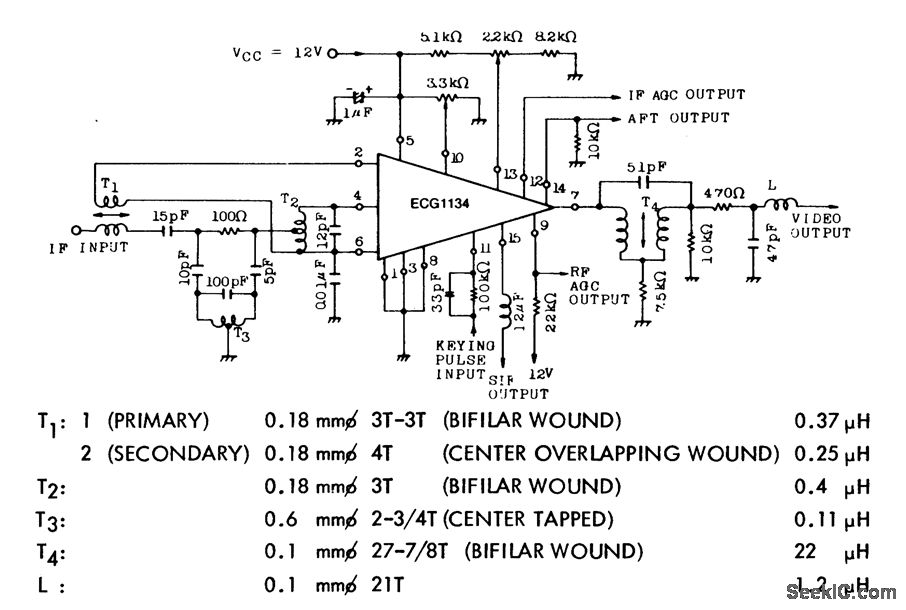

TV video processor. The EGG 1134 contains a picture IF amplifier, avideo detector,a video amplifier,keyed AGC with noise immunity, delayed AGC for thetuner, an AFT amplifier, a sound IF amplifier, asound carrier detector, a4.5 MHz sound carrier amplifier and a reverse AGC voltage for MOS FET tuner. Coil data is shown below schematic (courtesy GTE Sylvania Incorporated).
