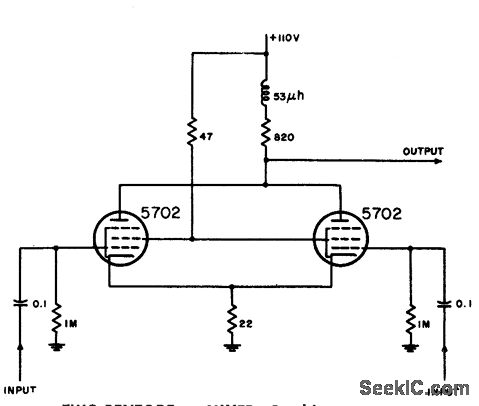

TWO_PENTODE_MIXER

Published:2009/7/23 23:58:00 Author:Jessie | From:SeekIC

Combines range markers and radar video. Compensated load improves high-frequency response.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N4-4.
