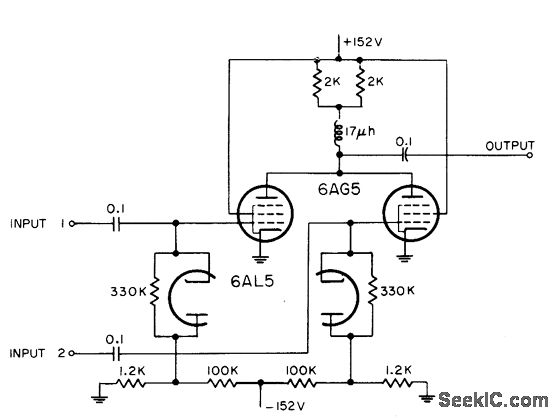

TWO_PENTODE_RADAR_AND_IFF_MIXER

Published:2009/7/23 23:57:00 Author:Jessie | From:SeekIC

Each grid is clamped by diode to establish base line of positive input pulse at -1.8 v.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N4-5.
