LOW_LINE_LOADING_RING_DETECTOR

Published:2009/6/25 22:36:00 Author:May | From:SeekIC

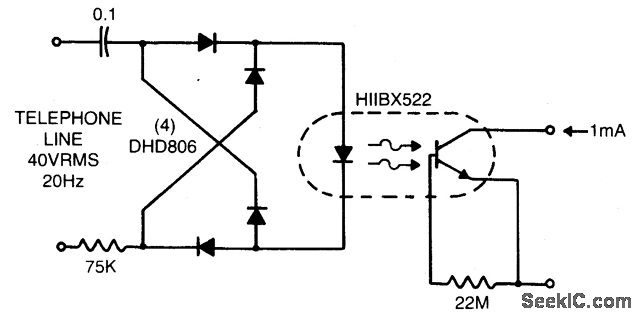

Low line current loading is provided by the H11BX522 photodarlington op-tocoupler, which provides a 1 mA output from a 0.5 mA input.
