PHONE_LIGHT

Published:2009/7/6 20:32:00 Author:May | From:SeekIC

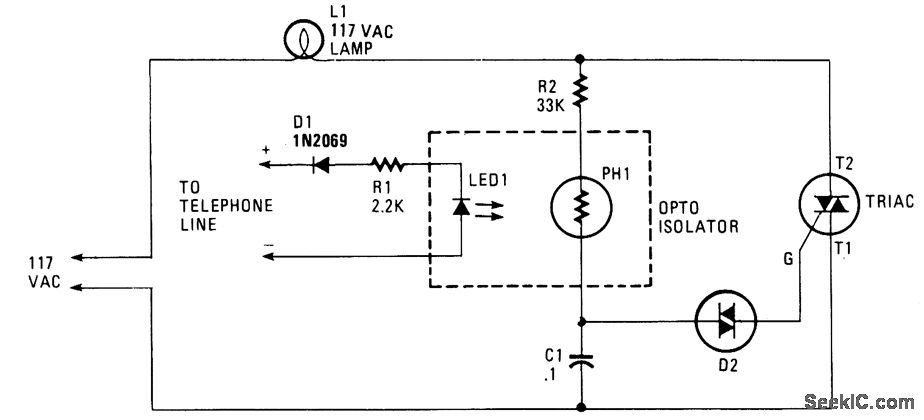

When the phone does ring the triac is triggered into conduction by a signal applied to its gate (G) through a bilateral switch (diac), D2. The triac acts as a switch, conducting only when a signal is present at the gate.
